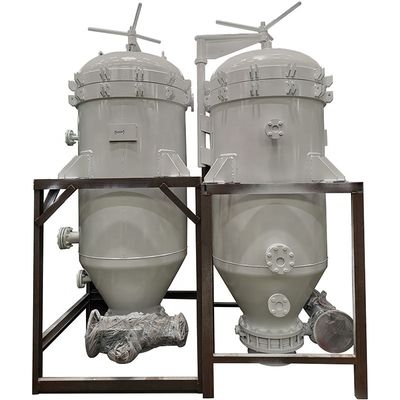

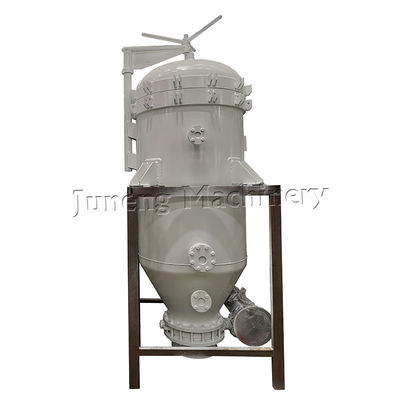

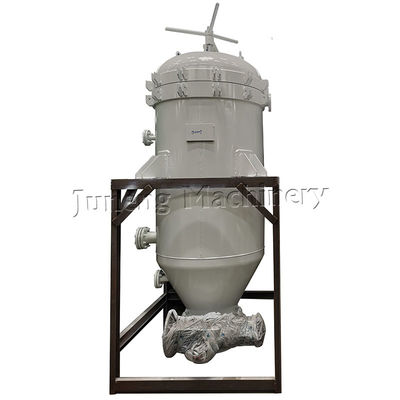

Model NYB White Color SS304 Pressure Leaf Filter with Insulate Jacket
Product Specifications
| Attribute |
Value |
| Condition |
New |
| Weight (kg) |
1300 |
| Warranty |
1 Year |
| After-sales Service |
Field maintenance and repair service |
| Name |
Pressure leaf filter |
| Structure |
Vertical leaf Filter |
| Material |
Stainless Steel 304 |
| Capacity |
4-6T/H for oil |
| Filtration area |
20m² |
| Color |
Green or blue |
| Design Temperature |
100-150 ℃ |
| Design Pressure |
0.6Mpa |
| Applicable Industries |
Manufacturing Plant, Food & Beverage Factory |
| Core Components |
Pressure vessel |
Product Description
The NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.
Product Application
The filter is composed of shell, filtration plate, cover, and automatic dump device. The filtration plate is made of many layers of stainless steel filtration materials, and they are installed on the central liquid collection pipe, so it can be dismantled for cleaning very conveniently.
Technical Specifications
| Model |
Filtration area (㎡) |
Filter cake volume (L) |
Treatment Capacity (Oil) |
Treatment Capacity (Resin) |
Treatment Capacity (Beverage) |
Work Pressure (Mpa) |
Max Pressure (Mpa) |
Work temperature (℃) |
Machine volume (L) |
| NYB-2 |
2 |
30 |
0.4-0.6 |
1-1.5 |
0.1-0.4 |
0.1-0.4 |
0.5 |
≤150 |
120 |
| NYB-4 |
4 |
60 |
0.5-1.2 |
2-3 |
2-5 |
|
|
|
250 |
| NYB-7 |
7 |
105 |
1-1.8 |
3-6 |
4-7 |
|
|
|
420 |
| NYB-10 |
10 |
150 |
1.6-3 |
5-8 |
6-9 |
|
|
|
800 |
| NYB-12 |
12 |
240 |
2-4 |
6-9 |
8-11 |
|
|
|
1000 |
| NYB-15 |
15 |
300 |
3-5 |
7-12 |
10-13 |
|
|
|
1300 |
| NYB-20 |
20 |
400 |
4-6 |
9-15 |
12-17 |
|
|
|
1680 |
| NYB-25 |
25 |
500 |
5-7 |
12-19 |
16-21 |
|
|
|
1900 |
| NYB-30 |
30 |
600 |
6-8 |
14-23 |
19-25 |
|
|
|
2300 |
| NYB-36 |
36 |
720 |
7-9 |
16-27 |
23-31 |
|
|
|
2650 |
| NYB-40 |
40 |
800 |
8-11 |
21-34 |
30-38 |
|
|
|
2900 |
| NYB-45 |
45 |
900 |
9-13 |
24-34 |
36-44 |
|
|
|
3200 |
| NYB-52 |
52 |
1040 |
10-15 |
27-45 |
42-51 |
|
|
|
3800 |
| NYB-60 |
60 |
1200 |
11-17 |
30-52 |
48-60 |
|
|
|
4500 |
| NYB-70 |
70 |
1400 |
12-19 |
36-60 |
56-68 |
|
|
|
5800 |
| NYB-80 |
80 |
1600 |
13-21 |
40-68 |
64-78 |
|
|
|
7200 |
Main Features
- No cloth or filter paper required, significantly reducing filtration costs
- Fully closed operation is environmentally friendly with no material loss
- Vibration residue falling reduces labor intensity and enables continuous operation
- Residue discharging through pneumatic valve minimizes worker labor
- Capable of activated carbon filtering or bleaching filtering, completely replacing plate and frame filters
Filter Leaf for 30D09
Example: NYB-12 Configuration
To obtain 12 sqm filtration area, the filter is executed with 11 filter leaves. Leaves are surrounded by heavy box channel 1.8 mm material 316L. Topside of leaf with reinforcement and one vibrator fork per leaf (material SS 316). Leaf bottom with outlet nozzle with "O"ring seal (material nozzle SS 316 and Viton rubber "O"ring).
Butterfly Valve
Example: NYB-12 Configuration
At the bottom of the filter a DN 400 butterfly valve WAFER TYPE for dry cake discharge. Uses 1st quality butterfly valve with seat material: NH-S (up to 150°C high temp). Valve complete with pneumatic actuator double acting type with air supply 5.5 Bar.
Certifications
Our company has obtained various certifications including:
• ASME U (Certificate No.: 38793)
• ISO 9001:2015 (Certificate No.: CN1299-QC)
• ISO 14001:2015 (Certificate No.: CN1299-EC)
• ISO 45001:2018 (Certificate No.: CN1299-SC)
• BV and CE certifications
