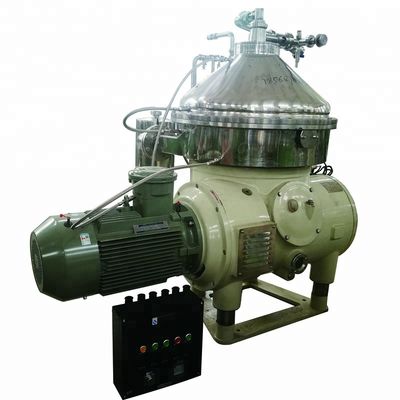

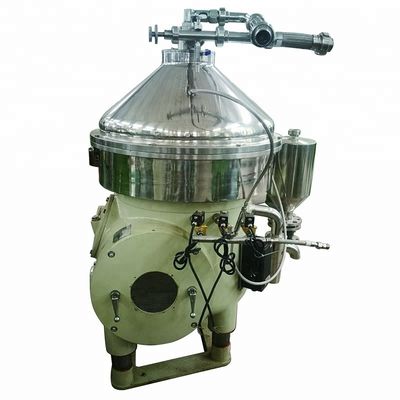

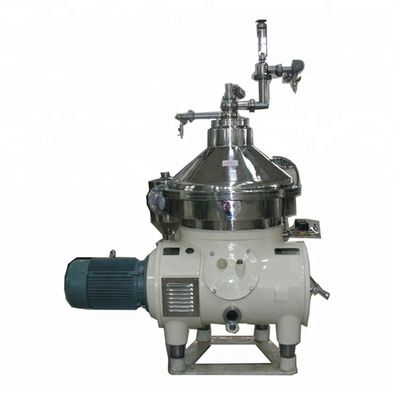

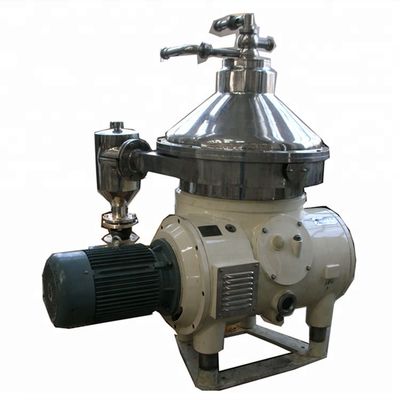

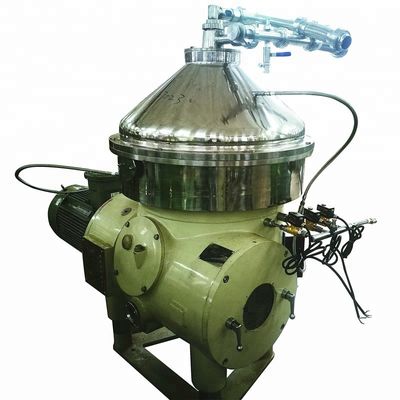

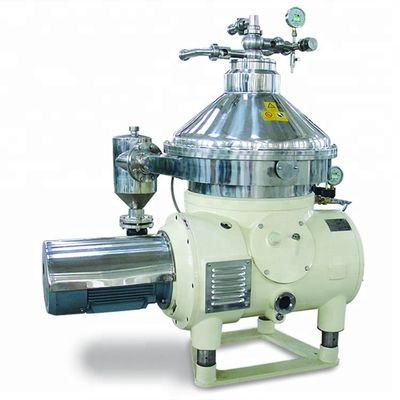

Milk Factory Use Disc Stack Milk Fat Separator
Product Overview
This industrial milk cream separator is designed for the dairy processing industry, capable of continuously separating cream and skim milk from whole milk while removing impurities and sediments. It can also standardize milk according to fat content requirements.
Key Features
- Separates extremely small solid particles (less than 1mm) from liquid suspensions
- Continuous feeding and operation
- High separation efficiency factor
- Automatic residue discharging
- CIP (Clean-in-Place) compatible
- Hydraulic coupling drive for longer service life
- PLC system for automatic control
- Excellent milk skimming performance
- Energy efficient operation
Technical Specifications
DHN Model (Dairy Clarification)
| Model | Capacity (L/H) | Inlet Pressure | Outlet Pressure | Weight | Dimensions (mm) |
| DHN360 | 2000-5000 | 0.05 Mpa | 0.1-0.35 Mpa | 1200 kg | 1530×1150×1500 |
| DHN470 | 5000-10000 | 0.05 Mpa | 0.1-0.4 Mpa | 1600 kg | 1800×1200×1750 |
| DHN550 | 10000-20000 | 0.05 Mpa | 0.1-0.4 Mpa | 2300 kg | 1950×1550×1960 |
| DHN616 | 25000-35000 | 0.1 Mpa | 0.3 Mpa | 3000 kg | 2185×1728×2082 |
DHNZ Model (Dairy Skimming)
| Model | Capacity (L/H) | Inlet Pressure | Outlet Pressure | Weight | Dimensions (mm) |
| DHNZ204 | 500-1000 | 0.05 Mpa | 0.1-0.2 Mpa | 520 kg | 810×850×1350 |
| DHNZ360 | 1000-3000 | 0.05 Mpa | 0.1-0.2 Mpa | 1200 kg | 1530×1150×1500 |
| DHNZ470 | 3000-7000 | 0.05 Mpa | 0.1-0.2 Mpa | 1600 kg | 1800×1200×2030 |
| DHNZ550 | 5000-10000 | 0.05 Mpa | 0.1-0.2 Mpa | 2300 kg | 1950×1550×1960 |
Working Principle
The disc separator performs two-phase and three-phase separation. Two-phase separation separates suspended solids from liquid or separates two immiscible liquids with different specific gravities. Three-phase separation simultaneously separates two immiscible liquid phases and a solid phase.
Applications
- Hot and cold milk separation
- Whey protein separation
- Buttermilk separation
- Dairy whey clarification
- Disinfection of dairy products
- Casein processing
- Syrup clarification
- Vegetable juice clarification
- Tea, coffee, and beer clarification
Construction Features
All parts contacting materials are made of stainless steel to minimize corrosion and meet food hygiene requirements. The separator bowl undergoes precise dynamic balancing for stable operation with low vibration and noise.
Technical Specifications
Material:
Super stainless steel
Function:
High-speed operation
Assembly:
Precision assembly
Control System
The separator features an automatic control cabinet with industrial computer and overload protector for highly automated operation, easy process adjustment, and reduced labor requirements.
Packaging & Delivery
| Packaging | Details |
| Size | 1950(L)×1800(W)×1950(H) mm (varies by model) |
| Weight | 1000kg-3000kg |
| Packaging Details | Standard wooden box packaging. For European exports, wooden boxes are fumigated. Alternative packaging available for tight containers or special requests. |
Company Information
With over 30 years of experience, our company maintains strict quality control with advanced processing machines, licensed operators, and international brand components. All products undergo multiple tests and inspections throughout production.
Services
Pre-Sales Service: Inquiry support, sample testing, factory visits
After-Sales Service: Installation training, operation training, overseas engineer support
Certifications
Frequently Asked Questions
Q: How can we visit your factory?
A: For international visitors, fly to Shanghai airport where we can provide pickup. For domestic visitors, travel to Wuxi station by air or train for pickup.
Q: How do you ensure product quality?
A: We implement strict quality control with advanced machinery, licensed operators, international brand components, and comprehensive testing throughout production.
Q: What payment methods do you accept?
A: We primarily accept T/T and L/C at sight, along with other common payment methods.
Q: What is your warranty policy?
A: We offer a 12-month warranty after commissioning.
Q: What are your shipment terms and delivery time?
A: Standard delivery is 20 days, with 30 days for customized machines, depending on order quantity.
